A few weeks ago I was trying to buy a second hand Nauticam GH4 housing with the camera and I thought I could have recycled the valve on the GX7 housing. However I did not manage to take it off, even using the tool provided the valve would not come off.

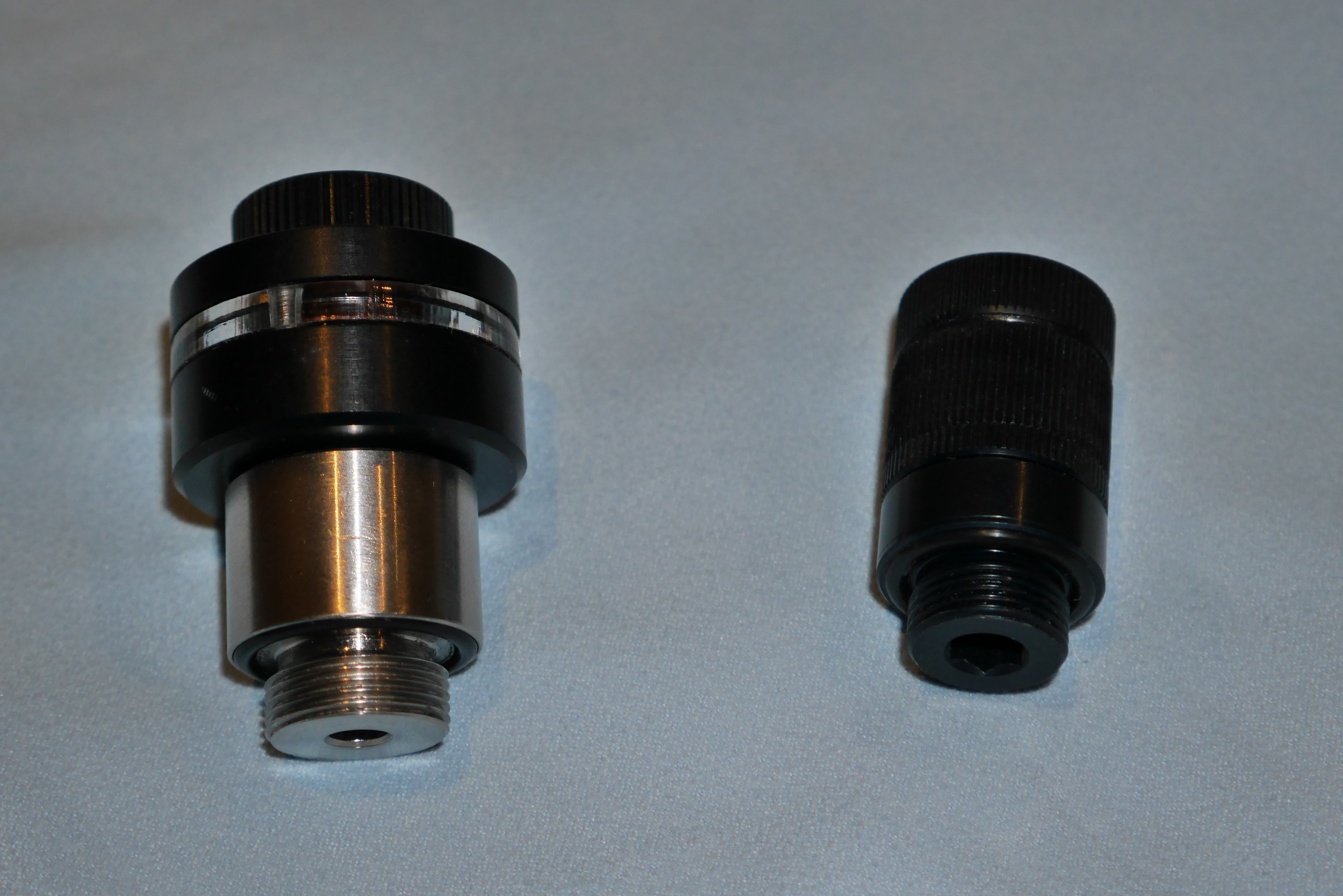

Bare Vacuum Valve
The prospect of buying another valve did not sound particularly appealing so I tried to work out if there were some basic options out there and got in touch with vivid housings.
I wanted to find out if it was possible to use the leak sentinel that I still had as a dumb valve. I was also told that is possible to order the v4 circuit board for your leak sentinel v3 for €50. But I also noticed that there was a valve only option for €75. After a few discussions it turns out that is possible to order the vacuum valve (without circuit board) and the pump for €95 including shipping. This sounded quite appealing.
Unfortunately the valve was stopped at customs and it was dented disassembled and put back together damaging the o’ring plus my prospective seller for the GH4 rig had gone away. So in order to test if the valve was still working I used it with the M16 adapter that came with the leak sentinel v3 on the LX100 housing I have on loan that thankfully I have yet to return.
It works a treat! I posted a quick video review on my channel
Leak Sentinel v4 Updated Review
Vivid housing have taken on board my suggestions and the Leak Sentinel V4 comes with temperature compensation and also a very useful overnight mode. You an pressurize the housing and switch off the circuit if you prepare the rig overnight and then put it back on again. This is a clear advantage over other systems where the switch can only be accessed opening the housing. Another benefit is that if you have to change a port you also don’t need to fully open the housing.
I tested the leak sentinel v4 in parallel with the Nauticam system and generally worked well but there still some sensitivity having the sensor outside the housing so I suggest giving an extra stroke once vacuum is reached for safety otherwise the indicator may start blinking. Another useful feature is the battery warning indicator.
Frankly if you have a housing already equipped with a circuit and an indicator like the nauticam system it is likely you will only get the valve, after all the system in the housing has also a moisture sensor with an audible alarm. But if you have a housing without electronics the leak sentinel is a very cost effective option.
A word of warning as the circuit board is inside the valve care must be taken to have completely dry hands and dry environment when the valve is depressurised otherwise humidity can get into the PCB and make it fail.
The leak sentinel v4 costs €200 including shipping worldwide.
Both products are sold by vivid housings http://www.vividhousings.com
For clarity I received no benefit or commission on any of my review and I remain vendor independent!
