Underwater Video Tips: Improving your Polar Pro Red Filter for GoPro

Just before leaving to North Sulawesi and in the process of packing I realised I had not completed the tweak of my GoPro Hero2 Set up.

I do not use the GoPro for video but for time lapse however the modification that I will present here is valid for both video and stills or time lapse.

Some users of the PolarPro filter have noticed that when you point the camera to the sunball or on a very bright day there is quite a bit of flare with this filter in the image corners.

Flare occurs when stray light enters the frame and reduces contrast giving a result a picture with washed out colours.

Flare is more relevant to wide angle and is usually reduced with lens hoods however our GoPro does not have anything like that and due to the large field of view probably it is better to be so otherwise the hood would be visible.

So what can we do to improve our polarpro filter and why does it flare more than others in the first place?

The PolarPro is the lowest price push up filter for the gopro and the reason is that its build is very simple. All other filters will have a dark rubber ring on the edge that has the dual effect to secure the filter to the housing and eliminate the stray light that may enter from the side. The polarpro is one single piece of acrylic and does not have this ring around the lens.

So let’s build one cheaply all you need is genuine gaffer tape, to make it look better I suggest black matt gaffer.

Pull enough length to cover the whole external ring of the polar pro filter and lay it on it to go from the edge of the front side back to the where the lateral panel ends. Once you have measured the approximate length make note of the width and then remove the gaffer. Pull the tape so that it rips at the width required and then tape the exterior making sure the smooth part is on the front side. Then create another strip a bit longer for the inner part. Make sure it is going straight and with no bubble and then once you get to the opening for the button come outside and overlap the exterior ring.

Once finished it should look like this

Modified PolarPro Front
Modified PolarPro Front

This is the other side you notice the part we ripped of the gaffer is on the outer side

Back
Back



Gaffer type does not mark and will stay there for a good number of dives. I am going to test this and see how long it goes but I expect more than 20 dives before it falls apart.

What you have seen here can be done for the Hero3 filters and it is actually simpler as the filter has no button opening



There has been a new Mako product coming at the low cost end and that one has a rubber ring so I would recommend trying it if you don’t have a filter already

Advertisements

Underwater Video Tips: Polar Pro Red Filter for GoPro

Time for part two of the filter discussion that involves a review of the PolarPro Red Filter for GoPro

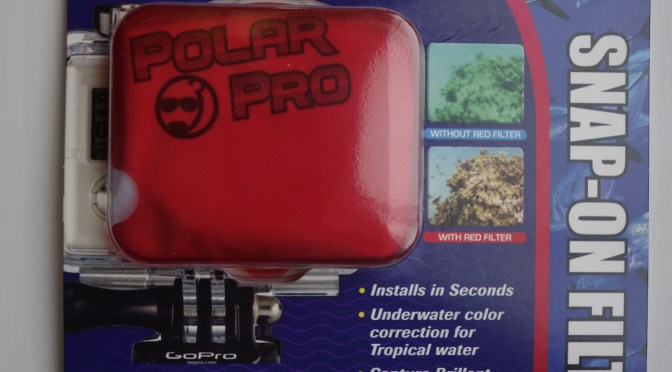

You can see in the featured image how the retail package presents, it is pretty simple inside we find the filter itself, a tether and a little bag to store the filter that also serves the purpose of cleaning it.

This is the cheapest removable filter for Gopro at a price of $29.99 and it is also available in Magenta version, that for reason explained in the previous post I recommend to skip entirely.

This is the image on the back of the package with the product details

_DSC0173

The declared working depth is 10 to 70 feet or 3-21 meters. For what we have seen in the previous post this is somewhat optimistic and will be true only in ideal conditions of blue sky and 100 feet visibility in clear blue water, in different conditions the maximum depth will be less.

The filter is made of Optical acrylic and there are no defects on it, it is fairly light and snap comfortably on and off the GoPro dive housing.

It may be worth seeing what is the effect of this filter on the GoPro

PolarProGoPro

As we can see the polar pro red filter actually casts a light magenta tint on the gopro image.

This is the same image without the filter

DCIM100GOPRO

So as a Hero2 user would I spend $29.99 for Polar Pro or $83.00 for the SRP dome the only true removable filters? Or should we say what do I get for additional $53?

Let’s have a look at performance of the two filters in daylight those are measured with another camera that can set a custom white balance keeping fixed shutter speed and ISO and seeing how the aperture changes:

             Polar Pro                                             UR/PRO

Temperature                  3200K                                                  2900K

Tint                                  M7                                                         M5

Fstop loss                       1+1/3                                                     1+1/3

So the UR/PRO is warmer than the Polar Pro and has got little tint to it. It may be useful to compare using a camera with custom white balance how the histograms look if we fix the white point and then apply the filters.

This is an image captured with a Sony RX100 after white balance

_DSC0176

The colours look natural as they should be we now put the PolarPro filter on the RX100 lens keeping the same shutter and ISO the camera opens the aperture to compensate for the light loss

_DSC0177

Warmer image with a magenta tint

If now we push the URPRO on the RX100 lens we get this image

_DSC0178

The image is globally warmer and has no obvious tint.

Let’s now have a look at the histograms this is the original image

NofilterRX100

Nice histogram pretty balanced, let’s have a look at the histogram with the PolarPro

PolarproRX100HistogramWe see the blue and green reduced but a behavior with spikes for all colors, this is due to the tint of the filter

If we look at the UR/PRO the histogram is typical of a color shift to warm

URPRORX100HistogramNote the lack of spikes and more balanced profile

Both the UR/PRO and PolarPro settle at identical exposure ISO400, f/2.5 1/50 of a sec with a 1 and 1/3 f-stop loss from the camera without filter that has a f/4 aperture.

So what does this mean? The UR/PRO behaves like a camera CTO filter most likely a CTO 1+1/2 if not double shifting the color temperature down in a similar fashion for the whole spectrum as it does not have a tint.

The PolarPro does the same with a less warm bottom end and a clear magenta tint that acts as a green filter. The magenta also creates spikes in the green and blur that are characteristic of a selective filter.

So which one is better? Overall the UR/PRO can’t be faulted as it does not introduce any tint and is warmer will most likely work in blue water at greater depths, how much greater is impossible to say. The UR/PRO is also very well balanced the proof is in the Gopro photo in auto there is no hue of any type which means this filter can be put in the camera at fairly shallow depths and still perform well.

The PolarPro seems to be a combination of a CTO filter plus a minus quarter or half green, this filter will be less effective at depth but work well both as red filter in blue water and because of the tint also in greenish water. It will however generate unnatural tint in blue water.

The ergonomics of the PolarPro are great the light piece of plastic is essential a design copy of the GoPro flat port cap the button is accessible and you can see the display if you need to. For $29.99 you can’t ask for more especially as it does well in water that is greener too. I can imagine it will require some tint correction in post in really blue water but this I have only seen in the Bahamas or Turks and Caicos anywhere else the green tinge was there and this cheap filter will take care of it. Also the Auto WB of the GoPro seem to love green so this will really do well in most occasions and I look forward to test it in fresh water where so far I have not used any filter.

Now that we know how the filter is done and what it can do how do we justify this?

A number of explanations, we have to hope that there has been no manipulation of the clips, so let’s continue with this assumption:

  1. The water color in California is quite green as there is plenty of kelp and algae
  2. The PolarPro has a magenta tint, the URPRO is just warming the color temperature
  3. The SRP dome has a design issue as there is a layer of water between the lens and the filter that may absorb color and can’t be recovered
  4. The GoPro White balance itself is pretty green

The combination of those factors could explain the difference in performance in this test.

Now coming to the Hero3 what about SRP Blurfix 3 versus PolarPro considering the filter themselves are the same?

The SRP blurfix is now closer to the lens so not affected by water between lens and filter, it has a 55mm thread which means you can add a polarizer very useful for outdoor shots on the boat, total cost:

SRP Naked $32 + Red Filter $77 + Polarizer $31 = $140

Polar Pro Red Filter $29.99 + PolarPro Polarizer $29.99 = $60

A hefty $80 difference for a piece of equipment the Hero3 that costs $399 is this justified? If we take out the Polarizer and consider the SRP dome for Hero3 at $77 the difference is still $47.

I would say it depends, for the average user that has an Hero2 or Hero3 and uses it at normal depths and is not after the maximum quality the PolarPro is just fine affordable and keep the overall cost down, it can also be removed and the ergonomics are great.

If instead you want to use the filter at greater depths and especially in water that are really blue the URPRO cannot be beaten however the price differential is substantial.

Now some people will say hang on a minute filters have to be tested in water etc etc. Well that is not definitive either because filters perform differently in different conditions, different locations so there is not an absolute best ever this is why cameras have custom white balance. Filters are not rocket science there is a lot that can be foreseen just by looking at histograms and temperature and we can set our expectations quite easily.

If you are in the market for a removable GoPro filter at $29.99 the PolarPro Red filter is a killer as it works well in green water too.

If instead you are not after a removable filter just get yourself a sheet of Lee double CTO and a pair of scissors and cut it to go inside the housing, this will cost 50 cents and be perfectly fine.

If you are a perfectionist and want to push your gopro to the maximum working depth of a filter and want a removable option the SRP UR/PRO is for you.

Underwater Video Tips: Using filters with your GoPro or Compact Camera

Filters Test

Following a number of posts about filters in various GoPro forums I decided to check in detail the behavior of the UR/PRO filters and see what is that they really do.

I guess the reason is that people do not really know or want to know the physics behind it and prefer to entertain many discussion that involve trial and error.

One of the most interesting one is this clip here that generated some ferocious comments by some users of other products that of course were not pleased having spent money that their choice seemed not to be the best.

To understand a bit more about what filters do we need to look at light temperature graphs like the one below.

techcolour-temp-chart

Light colour is measured in K and high value means cold blue light and low values represent warm red light.

As we know underwater red gets absorbed approximately at a rate of 1 f-stop every 2.5 meters we go deeper compared to blue light with the result that red colour disappears pretty quick followed by green to become completely blue at depth.

Some time ago cameras were shooting film not digital and there was no way to correct colours when the film itself got developed. So to perform some decent underwater photography people used strobes and fisheye lenses to get really near and blast the reef with light in order to restore the real colors.

This worked very well for close shots but was useless for wide angle at distance, so color correcting filters that could go underwater were developed for ambient light photography.

So what is a CC filter? A common misconception is that filters add colours to the picture, whilst this is practically true this is technically incorrect.

So what does a CC filter really do? As the word says it filters light, more specifically filters selected part of the color spectrum. This is done at expense of available light so if we use a filter we will have less total light or for our purposes exposure. This is well explained on the URPRO website where they talk about film sensitivity, if you use a filter you will loose 1 f-stop so use a higher ISO film.

http://www.urprofilters.com/content.do?region=FilterInstructions

The filter can be designed for different purposes and depending on its color and opacity will be more or less aggressive. If you read very carefully the urpro website says that there is a maximum distance that the filter will be effective at.

UNDERWATER FILTER DISTANCE

Photographically and visually reds, oranges and other warm colors become dominated by the natural blue-green (cyan) effects of the water when it is more than 8-10 feet deep.

Because all water is a continuous filter, the deeper a subsea photographer goes beneath the surface, the more colors are naturally “filtered out” of the spectrum.

As a result, the depth of the water must be added to the distance between the camera (or flash) and the subject to give the underwater filter distance. Use the following formula to determine the correct underwater filter distance:

+ Depth of water above the photographer
+ Distance from camera (or flash) to subject


= Underwater filter distance

Scuba divers using a still camera or a movie camera must combine the depth of the water plus the distance of the camera from the subject. This sum should not exceed 80 feet for color negative films and video, and should not exceed 30 feet for color slides. In all cases, the best color is achieved when the camera is close to the subject!

What that means is that the working distance of the distance is not the same as depth so you can push a filter say down to 24 meters but then the distance to subject needs to be zero. So if you are shooting something 3 meters or 10 feet away in 21 meters of 70 feet that as much as you can get.

When it comes to underwater use we are mostly interested in eliminating blue in tropical waters or green in cold algae waters.

In order to eliminate blue that has a high colour temperature we need warm colors typically something around orange. This will some of the blue beams and also part of the green beams and will produce filter light that is of a warmer color and will look ‘more red’.

But how much does for example a URPRO orange filter for blue water really warm up the light?

I have done some empirical tests with my Sony RX100 in a day where the Sony would measure a temperature of 6500K which pretty much correspond to cloudy day indoor.

Filter

The URPRO orange filter which is the same that is on the SRP filter for GOPRO measured 2800K with a tint of 5 Magenta. It also measured an overall absorption of 1 and 1/3 fstop of total light. I measure this filter instead of the one I have (which is not SRP and we can cover why in another place) because I think the SRP is the market lead at this time and it uses UR/PRO filters.

So the URPRO orange filter has approximately a 3700K warming effect with a strong magenta tint. This means that a camera with auto white balance and an average lens like a GoPro can restore some color in the image until the overall color of the light is around 10,000K in water. After that the filter essentially stops working and the light absorption is so much that it just becomes plain noise. I think this website gives a good idea

http://www.seos-project.eu/modules/oceancolour/oceancolour-c01-p07.html

So the reason why the picture stops having any red and starts looking green is that there is no red left in the light!

The breaking point seems to be around 18-21 meters or 60-70 feet and corresponds to our personal experiences I would say.

So what about custom white balance? We are pretty much in the same situation we can re-balance the camera up to 10,000K and add magenta or orange tint to the picture but you reach a point where there is too much red color noise.

The other advantage of custom white balance is that there is no light absorption so the picture ends up being less noisy as at the same aperture a loss of 1 and 1/3 fstop is like saying doubling the ISO from 800 to 1600 to capture the same scene. This is the reason a camera with custom white balance will always outperform the same camera with a filter at depth in terms of picture noise.

And what about Magenta filters? This is an interesting one as magenta filter absorb little light around 1/3 of fstops for URPRO and warm up the colour very little around 700-800K with a magenta tinge more prominent. A magenta filter will therefore absorb less light in total and introduce just a tint to the image.

From my tests a magenta filter is totally worthless on a camera that can white balance and frankly not that good at depth on camera with auto mode only. The reason is that light will get cold very soon at depth and the camera will be outside the AUTO white balance operating range (2700-7000  on average) pretty soon.

So what it means for users of GoPro cameras? The summary is pretty much like this:

  • In blue water filters are worth down to around 18 meters or 60 feet
  • In green water filters are worth even less as the color temperature very soon reaches a temperature where the auto white balance of the gopro is out of range

Although I have not yet measured I would think probably max 10 meters and that is it as I had similar results with my Sanyo that has same sensor size of the gopro and actually a faster lens.

Hope gopro users find this post useful as well as other users of compact camera to shoot video in ambient light.

In the next post I will compare the optical quality of the SRP dome port with the PolarPro snap on filter that generated such a debate on youtube and we will see why this filter could perform better than the SRP dome.
