First of all I have to thank Mike on Scubaboard to get this in motion the original post is here
When you shoot macro and operate at high magnification even the smallest movement translates into shake, let’s think about it for one moment.
A macro image will have a frame size of 36×24 mm, this means that a move of half centimeter or 1/5 of an inch is equivalent to 20% vertical movement a considerable annoyance. When you shoot a picture this is not an issue because with a very high shutter speed you can freeze motion and there will be no blur like in this image.
Trying to take a video of a moving subject like this proves challenging, and you need to slow down the footage to avoid sea sickness like here
So how do we get outstanding macro footage? We need to be super stable and avoid any type of shake.
One possibility is a tripod. There are various examples of underwater tripods such those made by Ultralight example here
There are several inconveniences using a tripod first is that those are more suited to a camera than a tray that may have the tripod hole off centre, so if you use a tray for your set up and just want to occasionally put it on a tripod this gets complicated.
So that where Mike came into action and contacted ULCS to build a tripod out of a tray those are my results using the following parts:
Camera set up
2x TR-DH handles
2x 12 segments 12″ locline arms
2x Sola 1200

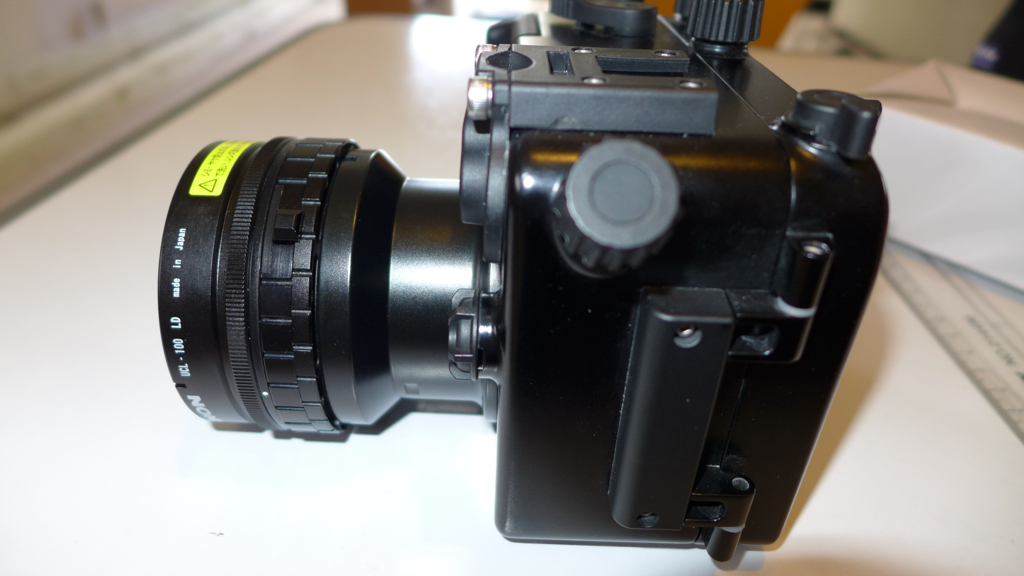

Panasonic LX7 in Nauticam housing
Tripod set up (approx $310)
3x 1420 ball base adapters
3x 5″ arm segments
This gives something like this also called Ultimusmacro
I tried this set up and the key issue is that you are far away from the floor and end up with working distances of around 10-15 cm or 4-6″ those are suited to a +6 diopter but not more and best with camera with at least 105mm zoom.
This is a bit of an issue with my Panasonic LX7 as the max zoom is 90mm equivalent. So I came up with a mini-monopod that has several advantages:
Closer to sea floor
For the mini-monopod all you need is ($150)
3x 1420 ball adapters (two female and one with screw or bolt) – alternatively 3x 3816 2x female and 1x 1420 with bolt if you use AC-AH handles with 3/8 hole
1 8″ arm segment
This is the mini in action also called cyclop
In this configuration I also have a lens holder on the 8″ this gives even more stability
With a mini-monopod you can easily use +10 diopters as you are on the bottom. In my set up I have floats however the 3 1420 ball heads on the bottom are sufficient to have a stable platform that can be pointing down even more raising the arm segment.
In addition to this the monopod can be used to push the camera in remote places or approach critters in crevices or similar
I will be testing both in North Sulawesi starting next week I hope to come back with some great footage
For more pictures of the set up check the Panasonic LX7 link on the top of the page
