Panasonic Lumix G X Vario 14-42mm / F3.5 – 5.6 / Power OIS and Nauticam Macro Port 35

The Lumix G X 14-42 Power Zoom lens is designed for video with a silent motor zoom controlled by a slider that is quite effective to use.

The focal range in 4:3 format is 14-42mm which corresponds to 29-87mm in the standard 35mm format (the crop factor is 2.08 36/17.3 and not 2 how commonly thought in the classic 3:2 aspect ratio).

This lens is not exactly a best in class in terms of performance especially considering quite a bit of vignetting at wide end and distortion that anyway gets corrected nicely in camera for most. A detailed review is here http://www.photozone.de/olympus–four-thirds-lens-tests/765_pana14423556hd

You can see that this is lens is quite sharp at 2868 LW/PH to give you an idea the much more expensive Lumix 12-35mm reaches 3110 LW/PH though sharpness drops at corners to around 2100-2200.

Another interesting characteristic is that this lens performs best at f/3.5-f/5.6 which is close to the widest aperture as we will use this lens with the Nauticam flat port 35 this is all good news.

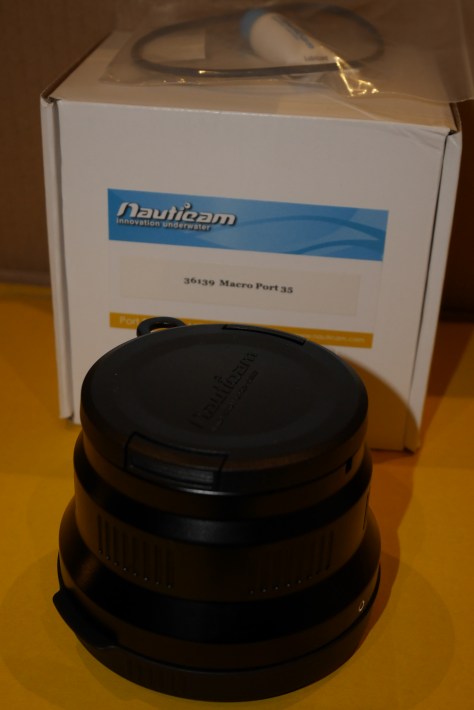

Nauticam Macro Port 35
Nauticam Macro Port 35

The lens fits very nicely inside the port leaving space for small filters and close up lenses but not really a lot.

The lens does not really move much between 14 and 42 mm and reaches his longest at 14mm.

I have tried using a set of Inon diopters to see the degree of magnification you can get.

This shot is with an Inon UCL-165 +6.06 diopter.

Lumix G X 14-42 PZ @ 42mm with Inon UCL-165
Lumix G X 14-42 PZ @ 42mm with Inon UCL-165

The smallest frame width with this lens is 42mm however in video mode using the ex tele converter option this becomes a much smaller area achieving in fact super macro easily with the added benefit of larger depth of field.

If you are into pixel peeping you can see some chromatic aberration on the edges this is a combination of the lens and the wet diopter.

I also tried stacking an UCL-165 with the UCL-330 this achieves a capture width of 32mm so we are in super macro zone.

Lumix G X 14-42 PZ @ 42mm with Inon UCL-165+330 Stacked
Lumix G X 14-42 PZ @ 42mm with Inon UCL-165+330 Stacked

Image quality does not get much worse but there are some internal reflections here on the white surface as the Inon lenses are not coated externally.

Finally I wanted to see if the Inon UCL-100 would work and it does achieving super macro without any fringing. If you want to use this lens for pygmy sea horse photography and do not want to get an Olympus 60mm this or the sub see 10 are the close up lenses to get, also the nauticam SMC is in the same range.

Lumix G X 14-42 PZ @ 42mm with Inon UCL-100
Lumix G X 14-42 PZ @ 42mm with Inon UCL-100

Now onto what is really good of this lens port combination and this is the versatility as you can attach the Inon UWL-H100 and get a very wide 18mm flat wide angle that is very sharp indeed as per previous images

_1000200
Nauticam 35 Port with Inon UWL-H100 on Panasonic Lumix 14-42mm

Consider that this image is taken at f/3.5 and the ruler is in the corner at ISO 1600 and you can see that sharpness is more than acceptable.

More interesting is that for some reason with this lens you can fully zoom through even down to 42mm without soft corners.

I have no idea how this is possible but it works just fine.

So if you are a video junkie you can cover the whole 100 degrees wide to super macro with this lens the Nauticam 35 Macro Port the Inon UWL-H100 and the UCL-100. For video it gets even cheaper with the UCL-165. You can of course use the flat port to do nice fish portrait in the mid-range of the zoom.

I forgot to mention the zoom gear which is actually pretty expensive because of the complex spring design.

The total cost for the Nauticam 35 with zoom gear is $510 plus of course the lens itself $290 total of $800.

Inon UWL-H100 + LD adapter = $654

Inon UCL-100 = $282

Inon UCL-165 = $205

Wet Lenses Still total = $936

Wet Lenses Video total = $859

Let’s compare to getting an Olympus 9-18mm with 4″ wide angle port and the Olympus 60mm with 30 extension ring total price $2129.

Price gap for stills $393 but you now also have a mid range lens for portraits, personally I don’t really like the Olympus 9-18 behind that port comparing side by side images taken with the 14-42 PZ and Inon lens I am not sure the Olympus is any better and definitely needs diopters due to mushy corners. For macro the 60mm Olympus lens has the advantage of increased working distance but is a very specific lens that you would only use for really small stuff.

For what concerns video you would probably look at the Panasonic 7-14 and forget the Olympus 60mm the combination is worth $1800 which is a difference of $636. Again the issue with rectilinear lenses and dome ports is there and the 7-14 does not take diopters.

So if we were to use the lenses on land no doubt you would need additional glass but in water wet lenses can be quite cost effective especially if you use a micro four third camera for video.

Peter Rowlands uses a Panasonic GX7 with Inon UWL-H100 and dome successfully and I am joining that club now.

Stay tuned for more tests next to come will be the Panasonic Fisheye 8mm with the 4.33″ dome which is another essential buy for the micro four third cameras underwater, obviously for pictures and not video.







Advertisements

Moving to Micro Four Thirds

In a previous post last year I had mentioned that a move to an interchangeable lens camera was unlikely however seeing the latest generation of compact on the market also have a port system it is time to reconsider the options.

During the Christmas holiday Panasonic put up a double cash-back promotion which meant you could get a Panasonic GX7 with kit lens with £100 off the retail effective price.

On the web you could find the GX7 with the 14-42mm G Mega OIS for £449 and combined with the 20mm f/1.7 for £579. The 14-42mm is actually a good lens but knowing I had to get the Lumix G X Vario PZ 14-42mm I opted for the 20mm f/1.7 a very bright lens that seemed good for occasional photos.

Butterfly bokeh



So I got myself the X Vario PZ 14-42mm and also the Lumix G 12-32mm Mega OIS as I thought I needed something midrange but did not want to spend a lot of money for the 12-35mm Panasonic and especially did not want to entertain a 6″ wide angle port.

Foliage Detail 12-32 mm
Foliage Detail 12-32 mm

I actually think this lens has better IQ than the 12-42mm PZ

14-42mm PZ
14-42mm PZ

The 12-32mm is the kit lens that used to come with the GX1 so is not a massively popular lens. A quick look at the Nauticam Port Chart confirms this lens takes the same macro port 35 of the 14-42 PZ, this port through a 30mm extension can be used to house the Olympus 60mm Macro. So went ahead and contacted Alex at Nauticam UK to get a quote on the housing. It turns out that there are no stocks of the NA-GX7 so had to wait until yesterday to receive mine.

I asked Alex to lend me a Nauticam Wetmate as I thought this could be used on the 35 port with the 12-32mm Panasonic lens in case the Inon UWL-H100 vignettes.

I was not quite sure of the physics of the wet mate so I got myself some close up filters in case there were focus issues.

The 12-32mm won’t focus in water with the wet mate until you add a +1 close up filter.

12-32mm with +1 diopter and wet mate on macro port 35
12-32mm with +1 diopter and wet mate on macro port 35

Once you get focus the image quality seems pretty decent despite being shot at ISO 1250 f/3.5. However this configuration would start having focus problem past 15mm so I put on a + diopter and tried again until 20mm or 40mm in 35 equivalent terms.

12-32mm at 20mm with +2 diopter and wet mate on macro 35 port
12-32mm at 20mm with +2 diopter and wet mate on macro 35 port

Quality is pretty good and the chromatic aberration are probably coming from the cheap diopter more than the wet-mate.

I am quite happy with those results although I have to admit the wet mate with the 67mm thread is a pain to take on and off in water and also is not coated so scratches easily.

Nauticam has still to confirm if the 4.33″ dome port can offer full zoom with the 12-32mm, I suspect it will with the help of a +2 diopter. The alternative is the 20mm extension with the 3.5″ wide angle port, in future perspective this is interesting for wide angle macro photography but not so much right now so will go with the 4.33″ dome.

I also did some tests with the Inon UWL-H100 28LD, once again the Fix M67-LD adapter let me down the screws had melted into the aluminium despite the tender loving care and broken the adapter I could however take some shots without the hood before that happened.

Panasonic 12-32mm with Inon UWL-H100 at 12mm
Panasonic 12-32mm with Inon UWL-H100 at 12mm

There are some dark corners but all in all the result could be acceptable equivalent focal length in 16:9 is 16.5mm which is approximately 105 degrees.

There seems to be some variability and some times I would get black corners more. Considering I will switch to the Nauticam LD adapter that vignettes more this at the end is not so interesting. The image is also a bit distorted.

With the Panasonic Lumix G X Vario  PZ 14-42mm instead there are no issues of vignette even in 4:3 aspect ratio.

Panasonic 14-42 PZ with Inon UWL-H100
Panasonic 14-42 PZ with Inon UWL-H100

The camera focuses literally on the glass.

What is even more interesting is that the camera lens combination keeps sharp focus all across the zoom range all the way to 42mm or 84mm equivalent.

Pamasonic 14-42mma t 42mm with Inon UWL-H100
Pamasonic 14-42mma t 42mm with Inon UWL-H100

Fringing is contained and generally the image is sharp across the frame considering we are at ISO 3200.

I also did a test with the UCL-330 and using the Extended Teleconverter function available in video I could achieve 32mm width frame with the 12-32mm lens!!!

The other positive note is that this is a 1″1 pixel read without artefacts and moire so generally quality is very high.

I think the PZ 14-42mm with the Inon UWL-H100 and a single UCL-165 makes a fine combination to shoot all purpose stills wide and macro in one dive. For video I will have to determine if the UCL-330 is a better choice considering the extended tele converter feature.

A few other features of the GX7 that really make this camera a video machine include the flicker free video recording that allows you to fix the shutter speed if you had to press the video record button when you are taking stills. Normally the camera would work in P more and not respect any shutter rule, with this feature you are telling the camera to shoot in shutter priority.

The GX7 has also the capability of altering the gamma curve for contrast which is great and a number of picture style presets of which I recommend the Scenery one for underwater use if you white balance.

I did some low light comparisons with the Sony RX100 and despite two full f/stops advantage for the RX100 lens the GX7 still resolved more detail at ISO 3200 versus the RX100 ISO 800 which was a bit surprising.

The AVCHD implementation at 24 Mbps will be my favourite underwater mode unless I am shooting macro and is a full IPB codec unlike the IP only with no B frames that Sony provides. That must be reason why the image quality in video is better even at two stop higher ISO.

In case you are looking for the holy grail for Nauticam micro four thirds camera to do a bit of everything the Macro Port 35 and the Panasonic G X Vario 14-42mm Power Zoom are highly recommended. Probably the image quality is not as good as the Panasonic 7-14mm although in my opinion with the Inon lens the results are very similar to the Olympus 90-18mm with 4″ wide angle port. Macro again is acceptable but not amazing with wet lenses. I will have to test more I am concerned the UCL-100 may not work with this port. For a mid range lens the 12-32mm costs one third of the 12-35mm Power OIS and once I receive the 4.33′ dome I will do more tests, meanwhile an option is to use the wet mate that works until 20mm before you have to take it off. The 4/33″ dome should have better image quality but maybe I will be surprised there too.

Finally with the 30 extension you can transform the macro 35 into a 55 port ready for some serious macro with the Olympus 60mm so I think having only one flat port, an extension ring and one dome to cover fisheye photography, portraits, wide angle, close up and macro is not bad at all. And for video most likely is the only port you will ever need together with the Inon UWL-H100 which is expensive but every flexible indeed.

I will post more images of the rig once I have nailed all options in terms of lenses and arms.

The end of advanced compact cameras for underwater photography

With the arrival of the new Nauticam N50 port system for advanced compacts I believe we say goodbye to using a large sensor compact underwater.

We already saw some signs when Sony released the RX100 Mark III with a 24-70mm equivalent lens, this effectively killed any use of the camera for macro. The new Panasonic LX100 has a similar problem with a 24-75mm lens but on top it has the new N50 port system in the nauticam housing or a severely limited functionality in the Ikelite version. It is obvious that the Panasonic LX100 will have similar sever limitations for macro but also with only 10 Megapixels really not be a strong competitor.

The last kid on the block is the Canon G7X, this camera looks very similar to the Sony RX100 Mark II and has a 24-100 zoom range that on land is very useful with an aperture of f/2.8 at tele end that is really interesting for land use. However this camera in the Nauticam version has the same port system N50.

So why has Nauticam introduced this? Both the Canon G7X and the Panasonic LX100 have fairly long lenses in terms of physical size and the zoom mechanism is such that the lens is retracted at wide end. This means that there is quite a gap between the lens and the port and wet lenses in those conditions have issues of both corner softness and chromatic aberrations. So Nauticam has introduced a short port with zoom blocked so that wet lenses can be used.

Effectively this is like diving with a fixed 18mm lens on your camera behind a dome with no zoom capability, taking the wet lens off results in horrible pincushion distortion so not really appealing.

Pincushion Distortion at 24mm with flat port
Pincushion Distortion at 24mm with flat port

The dome port does not allow the use of the full zoom at least without a diopter, so this is of limited use too for video.

Cost wise the new housing with the port system are around $1,200 in the US with additional $350 for the dome and $180 for the flat wide port. We are approaching the low end of Micro 4/3 Nauticam housing prices and are more expensive than Olympus OEM options but without the same flexibility and quality in terms of lenses.

It is clear that the Sony RX100 Mark I and II will remain one of a kind and this is the reason why they remain popular few years after launch.

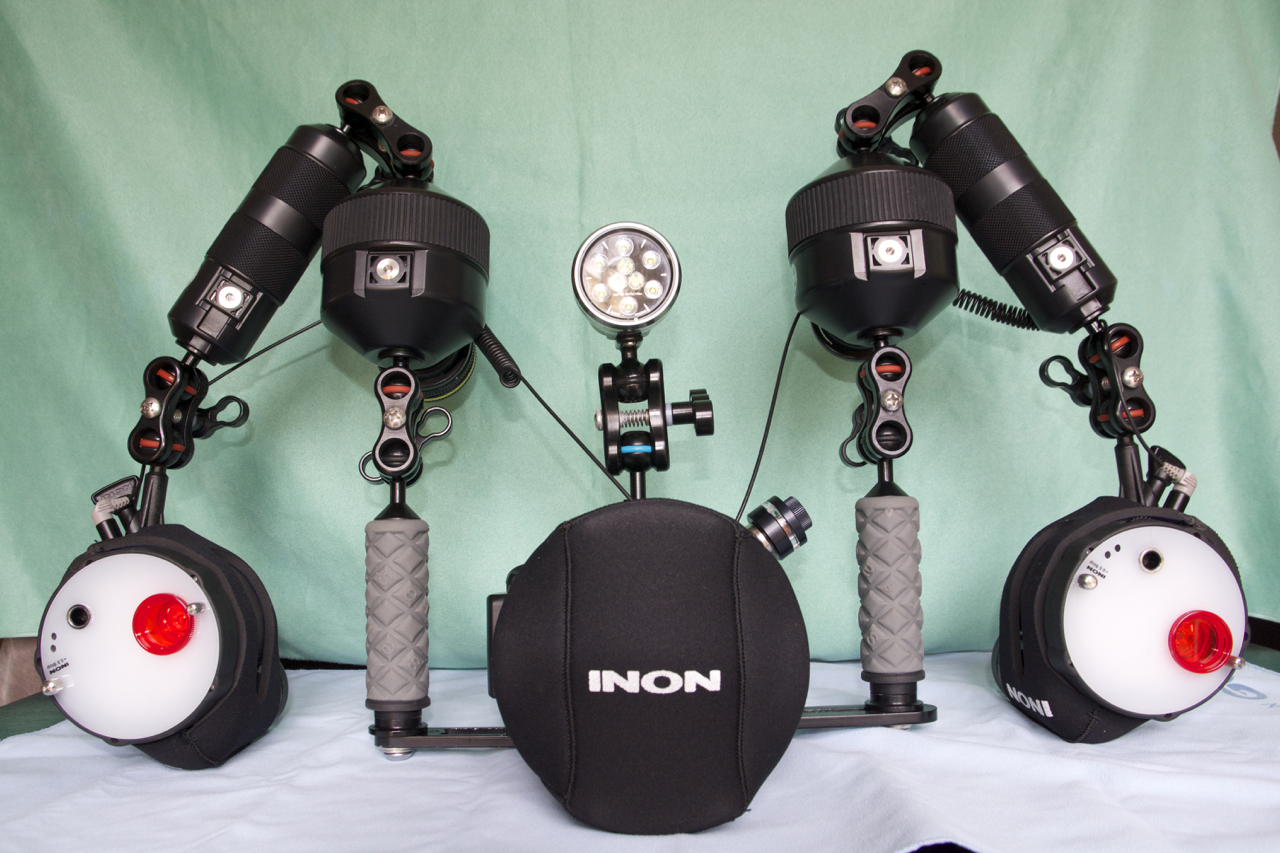

Sony RX100 Mark II Rig June 2014 Front
Sony RX100 Mark II Rig June 2014 Front



Nauticam NA-LX100 Pricing Confirmed

It is official now the prices of the NA-LX100 are confirmed

in US $1,200 for the housing with flat port, $180 for the wide short port and $350 for the 3.5″ acrylic dome.

In UK £920 for the housing and flat port, £150 for the wide short port and most likely £290 for the dome.

Which means we can now update the GH4 comparisons for 4K

Super Wide

Panasonic LX100  $899 NA-LX100 $1,200 with Short Port $180 and Wet lens Inon UWL-H100 $522

Panasonic GH4 with 7-14mm and 6″ dome $2750 housing and port only plus camera and lens $2,399

The max field of view of the two options is almost the same however you can’t zoom the LX100 due to the zoom lock on the housing.

LX100 $2,801

GH4 $5,149

Price Difference $2,348

Mid range

Panasonic LX100 $899 housing $1,200  3.5″ dome circa $350

Panasonic GH4 with 12-35mm and 6″ dome $2750 housing and port Camera and Lens $2,399

The LX100 is wider in 4K at 26-81mm vs 28-81mm of the GH4

LX100 $2,449

GH4 $5,149

Price Difference $2,700

Close Up

Panasonic LX100 with NA-LX100 rectangular port $2,099

Panasonic GH4 with 14-42 and 35 macro port $1,815 housing and port $2,680

The GH4 will have more magnification due to the longer focal length with the same diopter.

LX100 $2,099

GH4 $4,495

Price Difference $2,396

The gap is still significant even with the price increase ranging between $2348 and $2700.

I still have some concerns on the 3.5″ acrylic dome for the LX100 as I am not sure about focus distance. If this port works with the full zoom it is definitely the most appealing for video but we will need to check this out.
